CREASEE Fdm Professional 3D Printer Large Home Size Metal Printing DIY Kit 3.5Inch
CREASEE CS30 3D Printer Large DIY Kit 3D Printing
(1) Set A= CS30 3D printer + Gitfs
(2) Set B= CS30 3D printer + 6pcs nozzle 0.4mm + Gitfs
(3) Set C= CS30 3D printer + Extra 1pcs Carbon crystal silicon glass+Gitfs
(4) Set E= CS30 3D printer +1KG PLA+Gitfs
TECHNICAL SPECIFICATION
| Brand Name | CREASEE |
| Model Number | CS30 3D printing |
| Origin | CN(Origin) |
| CE Certification | Yes |
| Consumables Diameter | 1.75mm |
| Bed Temp | 80 |
| Language | 7 Languages |
| Maximum Printing Speed | 100mm/s |
| Interface Type | USB |
| Color Print Speed | 30-120mm/s |
| Fliament | PLA, ABS, WOOD,Carbon Fiber etc. |
| Slice Software | Cura.S3D |
| Power Supply | 24V |
| Precision | 0.1mm |
| Voltage | 110-220V |
| Operating System | XP, WIN7, MAC |
| File Format | G-code |
| Nozzle Diameter | 0.4mm, can be 0.2mm,0.3mm |
| Diameter Temp | 265 |
| Auto Leveling | No |
| Maximum Print Size | 300*300*400mm |
| Molding Technology | FDM |
This product can match with WIFI Module
CS30 3D Printing Z axis double screw
1, 32mm Super thin metal body
2, 3.5 Inch touch screen
3, Carbon crystal silicon glass
4, Silent TMC2208 stepper drivers
5, One-piece structure, European standard industrial grade aluminum profile
6, Smart filament sensor and resume printing
7, Easy filament feed function
8, 24V ultra-thin power supply
9, High precision extruder, Enlarged radiator，no plugging and spillage
10, 3-step quick installation
11, Z axis double screw: High-speed movment, more stable
12, CS30 Size: 300*300*400mm
7 Languages:
English, Russian, Spanish, German, Korean, French, Chinese
3.5 HD Touch Screen
Carbon crystal silicon glass compared with ordinary glass:
1-There is no need to apply glue before printing.
2-Strong adhesion, the model will not lift up when printing
3-After the printing is completed, the model can be quickly removed by hand
V Groove Structure Design:
Stable structure and Faster speed
make sure the printing accuracy more high more delicate ,and the movement more stable
Double Z axis drive, Double motor:
The frame adopts aluminum steel gantry double guide rail frame
It has the advantages of strong stability and low noise
T-module reinforcement:
which has a stable structure and high-precision printing capability
Filament Detection:
MK-10 Independent mold opening, independent research and development of extruder, with material break detection module, save material for printing
Independent Print Head:
Independent print head, no plugging, precise positioning, smooth output, and high temperature resistance
Resume Printing While Power-off, Smart filament sensor and resume printing
You can aslo continue to print with other color consumables
High quality power supply:
Imported chips, efficient and stable, Upgraded 2225 silent driver

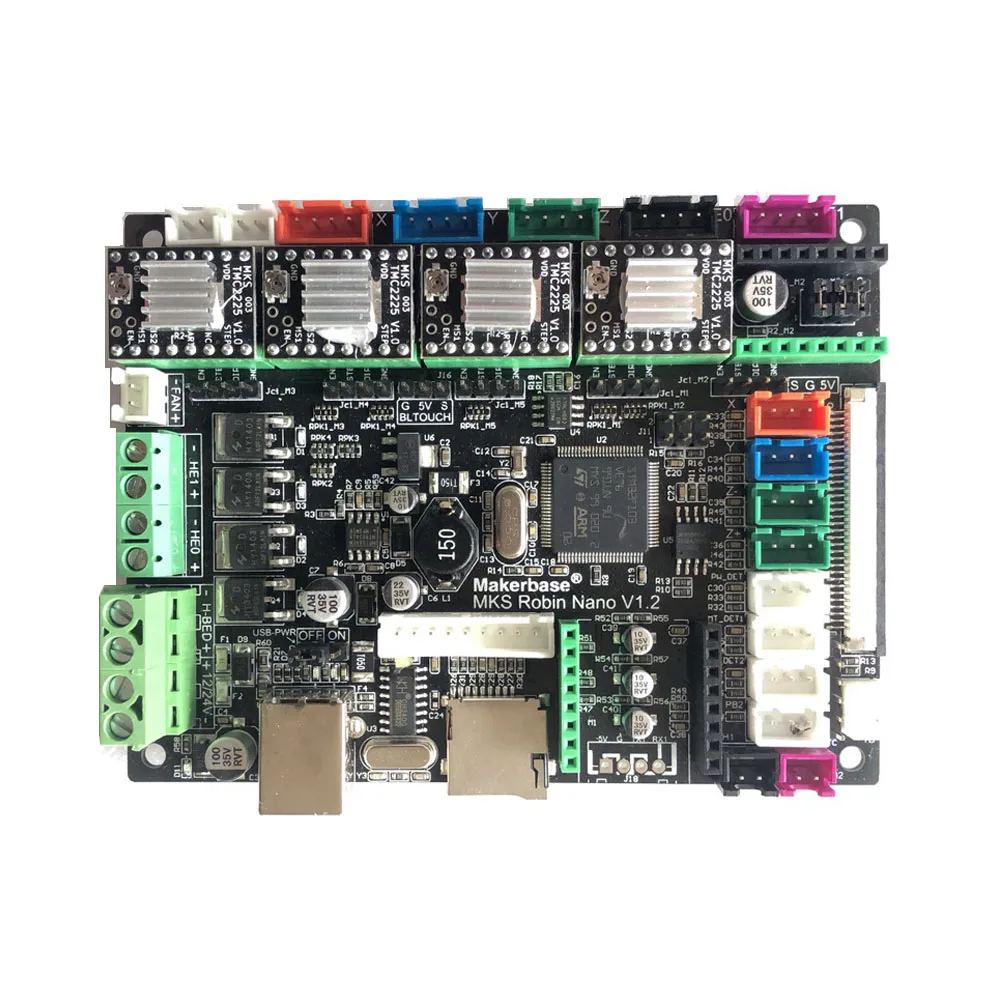

MKS Robin Nano V1.2 motherboard, 32 Bit Board, You can add 3D Printer Router WIFI Module
CS30 3D printer Weight and Packaging:
Shipping Weight: 15-22KG
Machine Weight: 12.5KG
Package Dimension: 645*535*280mm
Package Weight: 15KG
We have RoHs, CE, FC Certificate
